270L Heat Pump
Domestic compact, suitable for average-size families
Description
270L Heat Pump
Model
270-08AC6-290
Dimensions
1900mm x 650mm
Hot Water Production Rate L/Hr (COP)
75 (4.53) @20°C
Specifications
Model Number 270-08AC6-290 Storage Size 270 L Rated Delivery 250 L Heating Output 3.81 kW Power Input 0.84 kW COP of Heating 4.53 @ 20°C Water Temperature Setting 58 °C Maximum Tank Temp Setting 60 °C Compressor Rotary Refrigerant R290 Electrical Supply 220-240V/50Hz/1Ph Circuit 10 Amps Water Connections RC3/4” PTR Valve Setting 850 kPa Expansion Ctrl Valve ECV Setting 700 kPa PLV without ECV fitted / with ECV fitted 500kPa / 350 – 500kPa Operating Sound Level 48 dB Nett (Empty) Weight 135 kg Ambient Operating Temperature -10 °C to +40 °C Warranty 5 years tank, 2 years electric and refrigeration
AS2712 LIC. 2650 SAI GLOBAL
AS3498 WMKA2531SAI GLOBALDownload

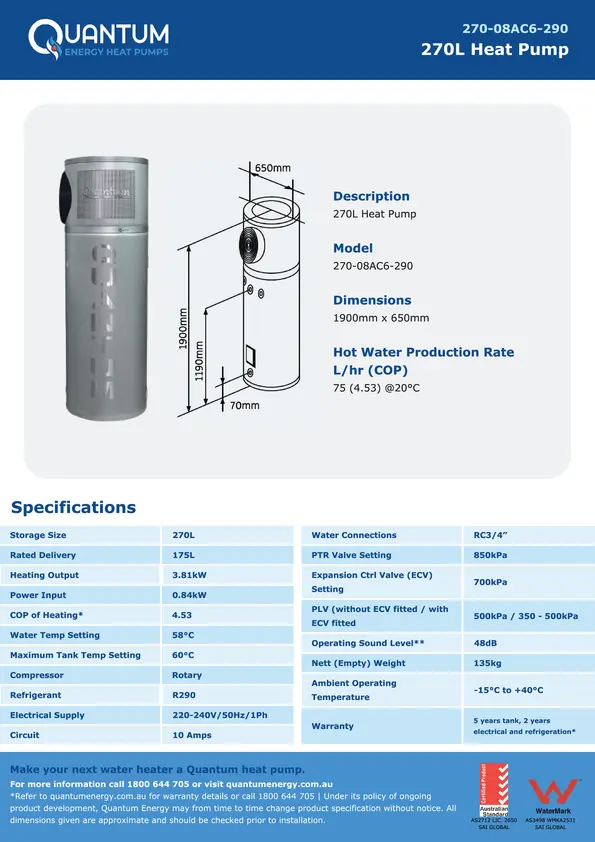

Click the image to download spec sheet
