Titan 340L Split System

High-Capacity, Energy Efficient Hot Water for Commercial Use

340 litre split system hot water unit

  • Modular Design: Ability to manifold multiple units for larger hot water loads.

  • Redundancy: Multiple units allows for redundancy
  • Portability: Fits into your commercial lifts, reducing hoisting costs.

  • Description

    Titan 340L Split System

  • Model

    340-17ASW-134

  • Dimensions

    2200mm x 650mm (Tank) 440 x 660 x 635mm (Module) Evaporator may be remotely installed up to 7m from the tank.

  • Hot Water Production Rate L/Hr (COP)

    131 (3.57) @20°C Ambient

  • 8+ People

  • Ideal for Hotels, Motels, Caravan Parks, Resorts

  • Can be manifolded together for large commercial installations

  • Specifications

    Model Number340-17ASW-134
    Storage Size340 L
    Rated Delivery315 L
    Heating Output6.22kW
    Power Input1.66 kW
    COP of Heating3.57 @ 20°C
    Water Temperature Setting60 °C
    Maximum Tank Temp Setting70 °C
    Compressor39cc Rotary
    RefrigerantR134a
    Electrical Supply220-240V/50Hz/1Ph
    Circuit15 Amps
    Water Connections3/4″ BSP 20mm
    PTR Valve Setting850 kPa
    Expansion Ctrl Valve ECV Setting700 kPa
    PLV without ECV fitted / with ECV fitted500kPa / 350 – 500kPa
    Operating Sound Level58 dB
    Nett (Empty) Weight165 kg (tank) 35kg (module)
    Ambient Operating Temperature-10 °C to +40 °C
    Warranty5 years tank, 2 years electric and refrigeration
    Certified Australian Standard product logo
    AS2712 LIC. 2650 SAI GLOBAL
    AS3498 WMKA2531SAI GLOBAL

  • Download

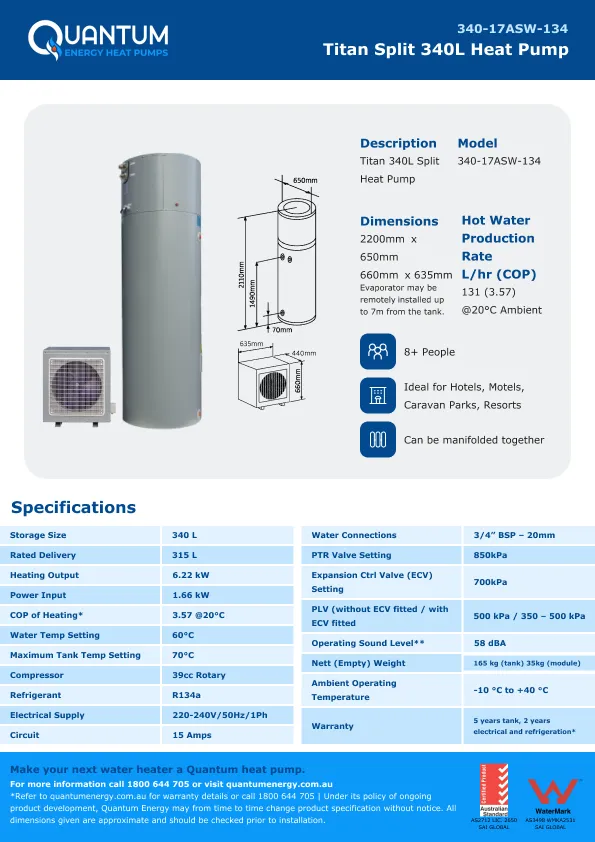

    Click the image to download spec sheet

    Quantum Titan Split 340L Heat Pump specifications
